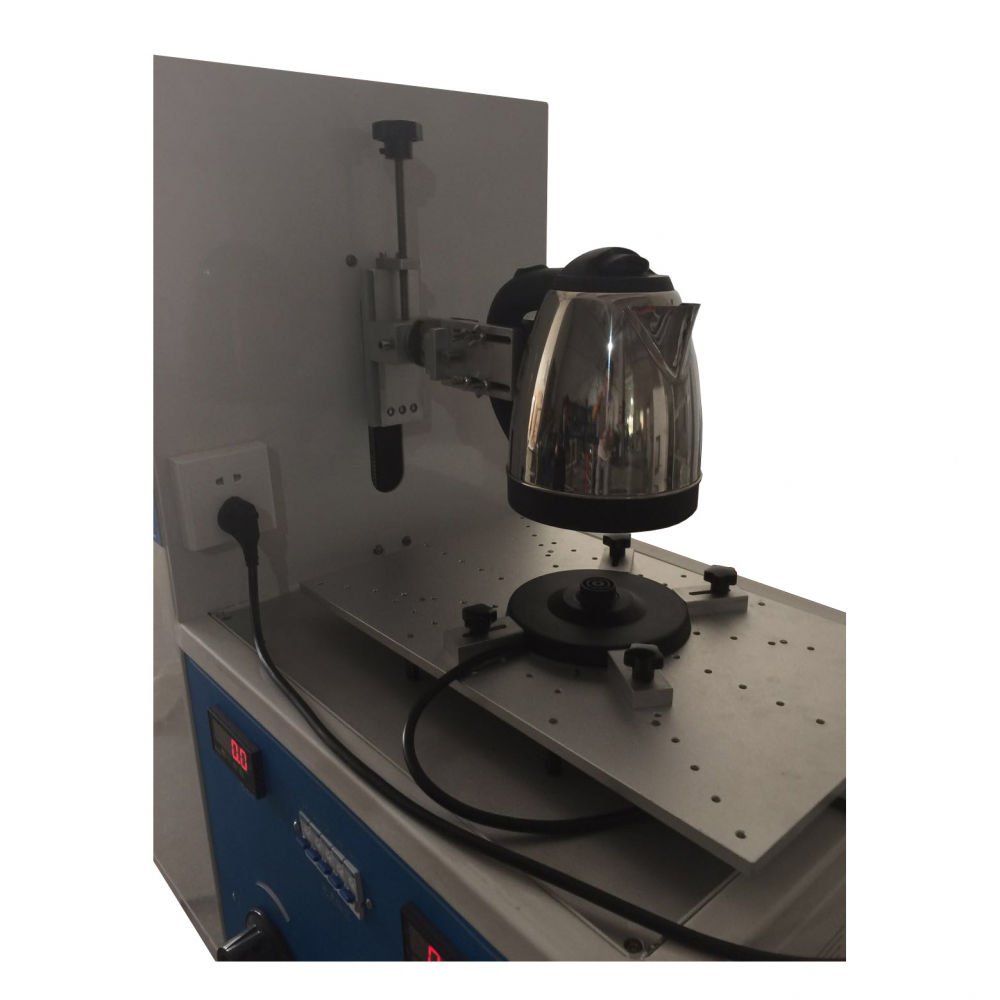

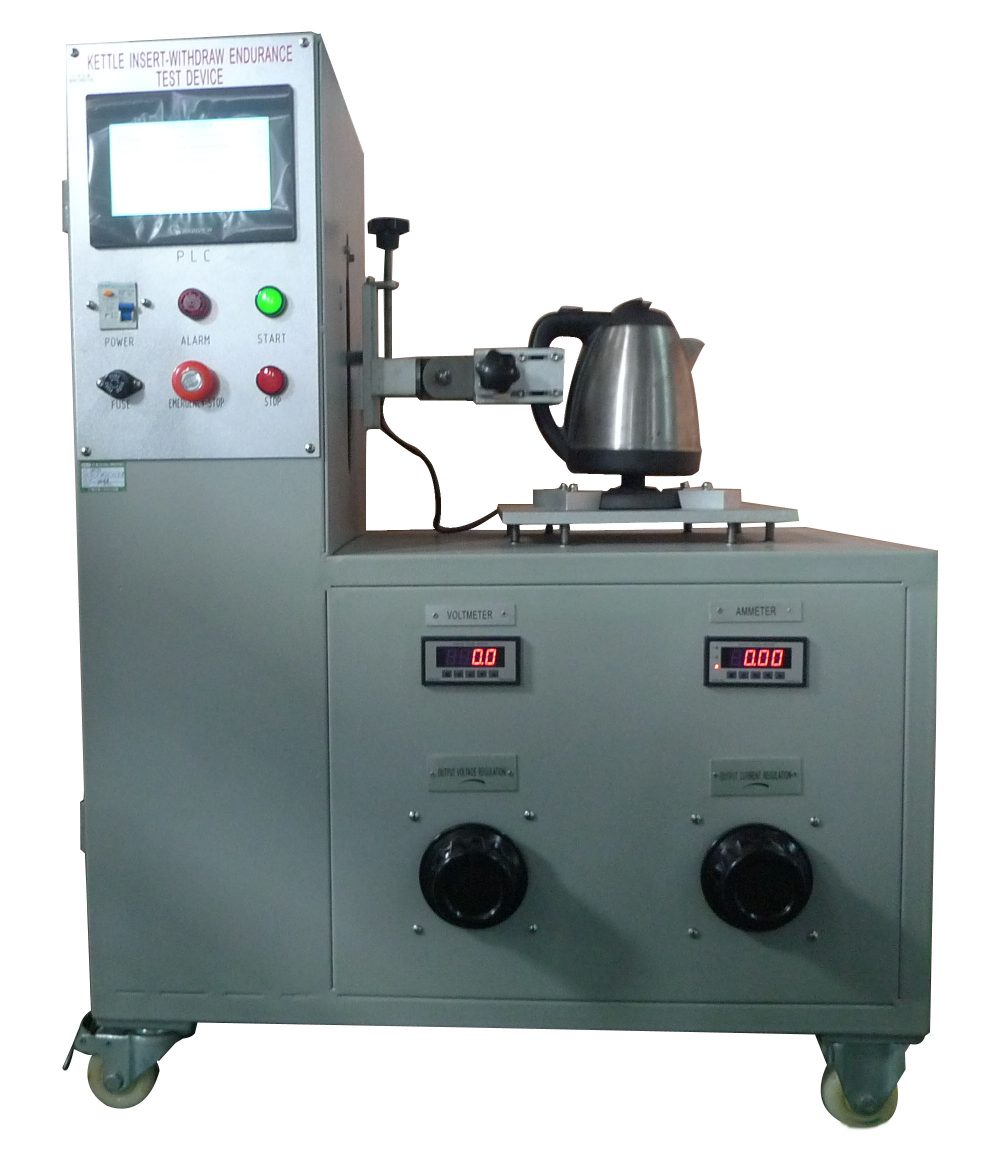

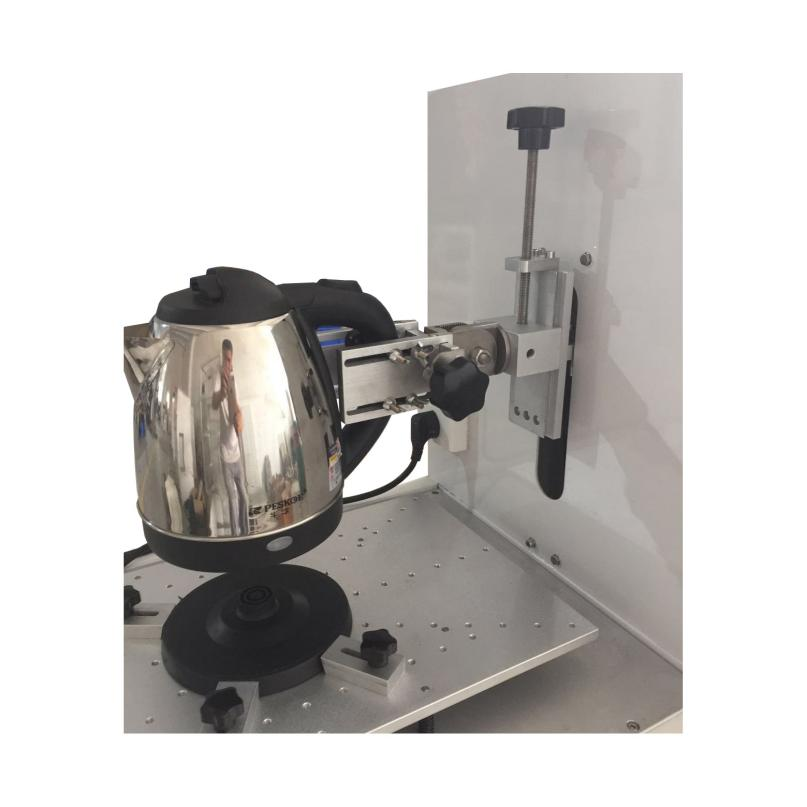

Cordless Water Kettle Plug And Pull Life Tester Testing Machine PLC Electrical System

Product Description:  The kettle plug-and-pull tester is manufactured in accordance with the requirements of Clause 22.103 of IEC 60335-2-15 standard and Clause 22.103 of GB 4706-19, and is used to test the plug-and-pull life of cordless kettles and bases. This equipment can preset the number of tests (up to 999,999 times), automatically record the number of tests and the number of conductive times during operation, and automatically alarm and stop when reaching the preset number of times or when a fault occurs.   Functionality: 1.This equipment is controlled by a PLC electrical system and utilizes a stepper motor to drive the reciprocating motion of the mechanical arm through forward and reverse rotation of the ball screw. 2.The entire operation is performed via a touchscreen interface, with parameters such as kettle plug-and-pull test frequency, time, stroke,…
